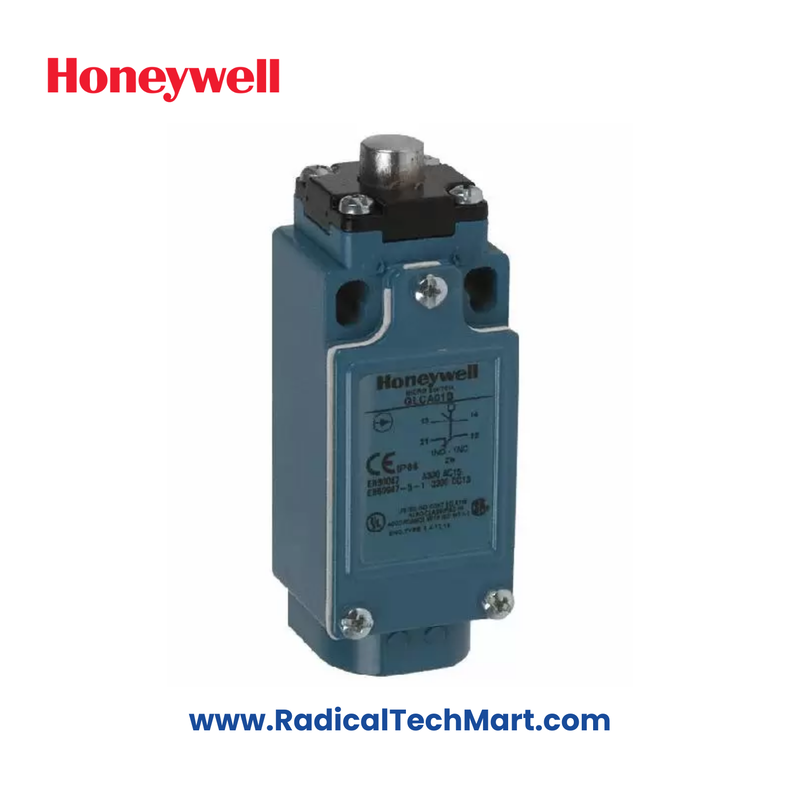

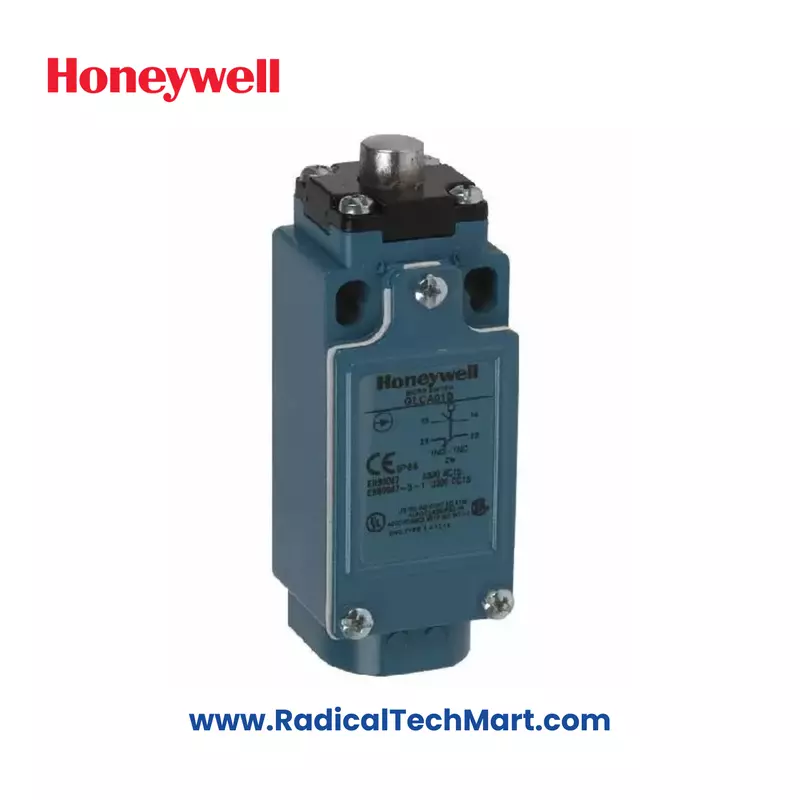

GLCA01B Honeywell Limit Switch

Product Description:

• Brand: Honeywell
• Model Number: GLCA01B
• Conformance to Standards:
  • CE
  • EN 50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN 45545-2 (GLC/GLE)
  • EN 61373

Housing Material:

• GLC Series and GLE Series: Electrostatic epoxy coated zinc
• GLD Series: High-strength glass-reinforced thermoplastic

Actuators:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector (other cable/connector options available, contact Honeywell representative)

Contact Options:

• GLC metal housing and GLD plastic housing: 1NC/1NO, 2NC, 2NO
• GLE metal housing: 1NC/1NO, 2NC, 2NO, 2NC/2NO

Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

Contact Material:

• Silver (standard)
• Gold plated (for low-energy applications)

Thermal Current (Ith): 10 A
Rated Insulation Voltage (Ui): 300 V
Rated Impulse Voltage: 2.5 kV
